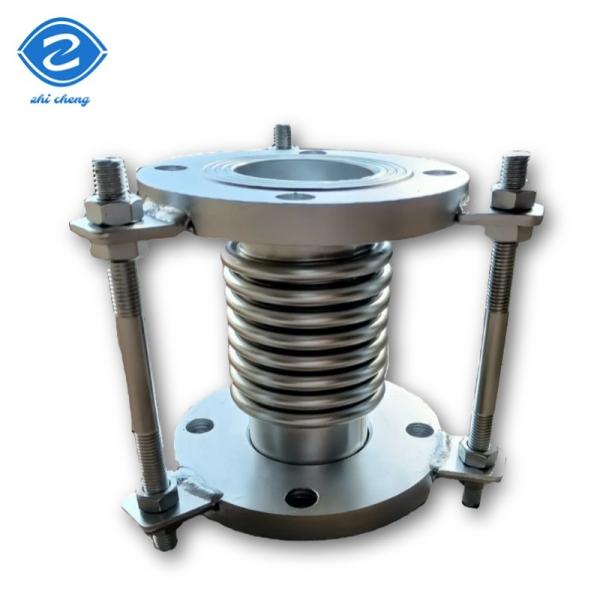

Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

Brand Name : ZHICHENG

Model Number : ZCB-1

Certification : CE

Place of Origin : Henan, China

MOQ : 1

Price : $13.50/bushels 15-98 bushels

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 9000 Bushel/Bushels per Month

Delivery Time : 5-8 work days

Packaging Details : Inner layer: plastic film, then placed in a cardboard box.
Outer layer: safe and sturdy export plywood box, markings on the carton and wooden box can be customised or packaged to your specifications.

Warranty : 1years

Customized support : OEM, ODM

Technics : Casting

Connection : Flange

Shape : Equal

Head Code : Round

Working pressure : PN10-PN40

Flange Standard : DIN, ANSI, BS, ISO, JIS, EN 1092

Operating temperature : -10℃-+300℃

Flange material : Stainless steel, carbon steel, etc

Application : Air, Water, Oil, Steam, etc.

Package : Wooden case packing

Product name : pipepline flexible expansion joint metal corrugated bello

Certificate : ISO 9001:2008

Drawing : Offer

Nominal size : DN32 - DN3000mm

Port : Qingdao port, tianjin port or negotiable

Contact Now

Stainless Steel Metal Bellows SS 304L/316 Flange Connection Flexible
Expansion Bellows

High-quality stainless steel corrugated welded compensator for water systems applications, available in 304, 316L, and 310S grades.

Designed to absorb thermal expansion displacement while dampening vibration and noise in pipelines.

Product Features
  • Absorbs thermal expansion displacement in pipelines
  • Reduces vibration and noise transmission
  • Customizable to specific requirements and working environments
  • Available with detailed drawings for customer proofreading
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Technical Parameters
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

Data above is only for reference.

Product Details
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Manufacturing Process

1. Cutting stainless steel plate


2. Rolling and welding stainless steel plate into pipe


3. Extruded pipe into bellow


4. Welding bellow with other parts into expansion joint


5. Grinding and polishing


6. Hydro test inspecting

Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

Application Scenarios
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection

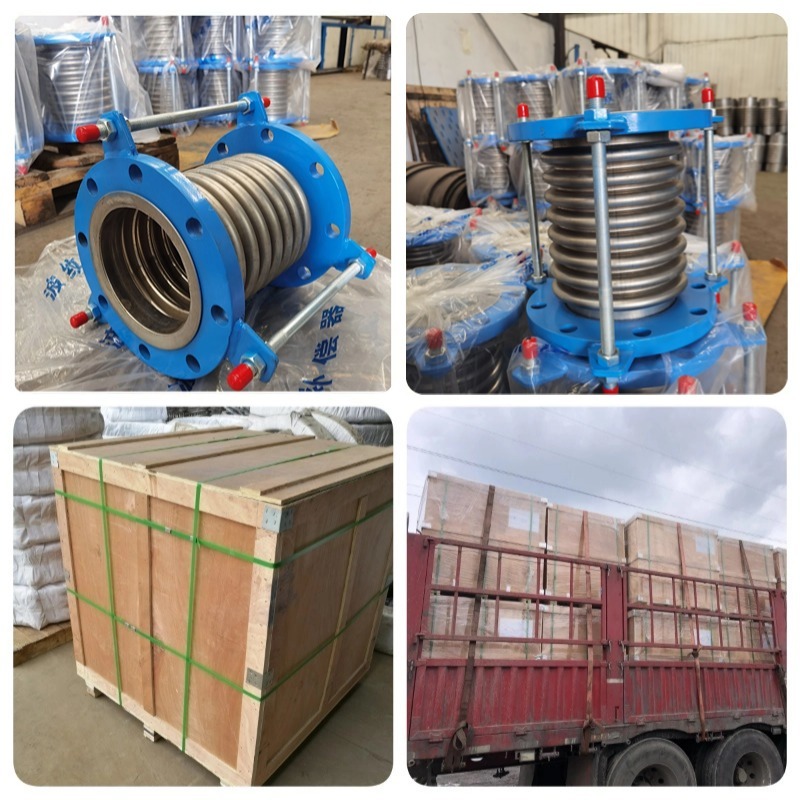

Packaging Details

Inner: Plastic film packing
Outer: Export wooden cases

Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Stainless Steel Expansion Bellows DN32-DN3000mm Flange Connection
Frequently Asked Questions
Q: Can you make the product as per client's requirement?
A: Yes, we can manufacture according to your exact specifications.
Q: What are your payment terms?
A: T/T (30% deposit, 70% balance before delivery) or L/C at sight.
Q: Can I visit your factory before ordering?
A: Yes, we welcome factory visits to inspect our quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How do you guarantee quality?
A: We accept returns for any quality issues during use.
Q: Do you accept small quantity orders?
A: Yes, we accommodate orders of all sizes.
Q: Can we choose different materials?
A: Yes, materials can be selected according to your requirements.
Q: What is your delivery time?
A: Typically 7-14 days, depending on order quantity.
Q: What's your standard packaging?
A: Plastic film inside with export wooden cases outside.
